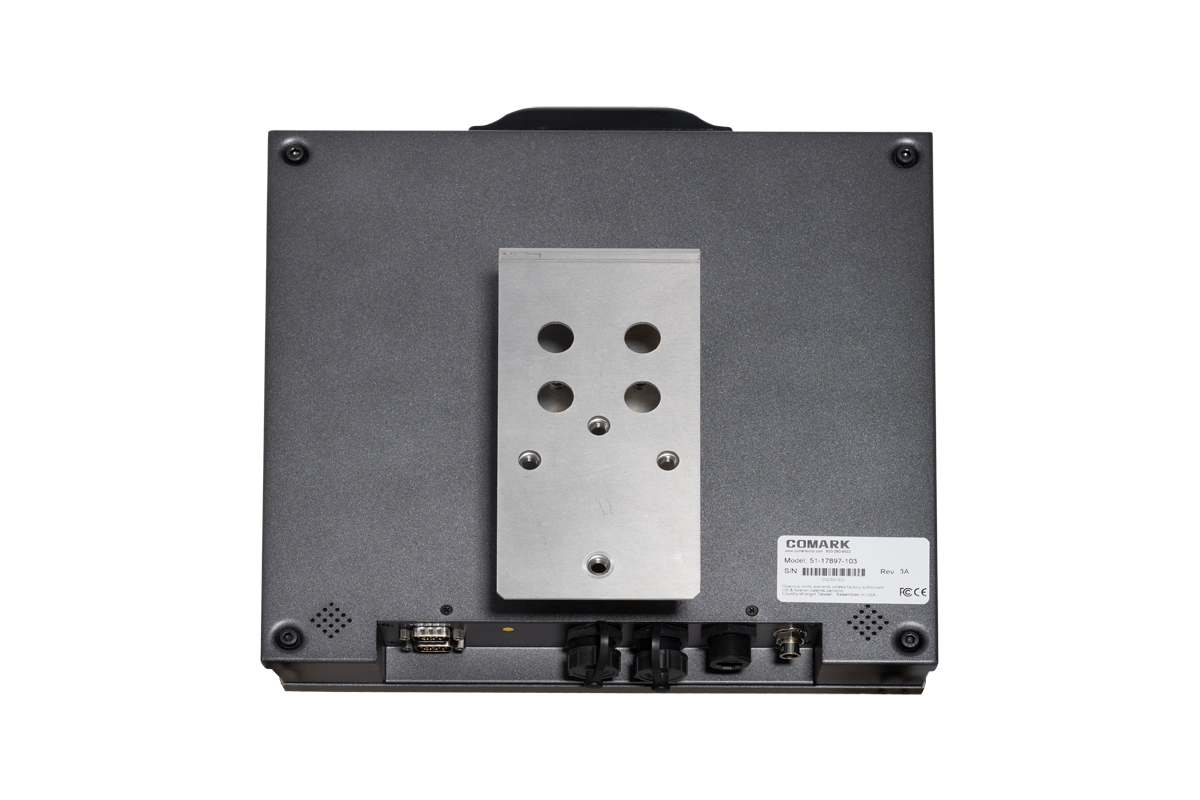

Industrial Grade Mobile Data Terminal Family
The Comark Industrial Grade Mobile Data Terminal Family defines industrial grade computing. Its operational from -20°C to +50°C/-4° to 122°F with a heater and able to support glove operation on a cost-effective 500 Nits resistive touch screen. Available in two sizes (12.1″ and 15″), this rugged tablet can be mounted on everything from construction equipment to ambulances to manufacturing equipment. And, of course, the entire line can be customized with scanners, GPS, or other options, including custom mounts.
Key Highlights
Fingerprint
Wifi
Protected
NFC
Easy to Use
QR Scan
Locator
Windows
TECHNICAL SPECIFICATIONS
| Processor | Intel® Celeron® N2930 processor |
|---|---|
| Memory | 8GB |
| Storage | 64GB optional 128GB/256GB |
| Operating System | Linux, Windows or Android |
| Screen Size | 12.1", 15.1" |
| Screen Type | LCD |
| Aspect Ratio | 4:3 |
| Resolution | 1024×768 |
| Brightness | 500-nit |
| Touchscreen Type | Resistive Touch Screen Indoor/Outdoor readable |
| Supports Glove Touch or Stylus | Yes, Both |
| Dimensions | 11.18” x 12.24” x 2.05” (284.06mm x 310.9mm x 52.2 mm), 13.31” x 15.11” x 2.17” (338.15mm x 383.9mm x 55.2mm) |
| Weight | 9 lbs., 13 lbs. |
| I/O | Headphone, LAN, RS-232, SIM, USB |
| Wi-Fi | Optional |
| Bluetooth | Optional |
| Cellular | Optional |
| Keypad | On screen |
| Accessories Included | Charger |
| Accessories Optional | Stylus and Mounting System |
| Fan or Fanless | Fanless |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) with optional heater -20°C to 50°C (-4°F to 122°F) |
| Power | Power filtering DC converter: 10-60V input, AC adapter, 19V DC 100 watt 110/220V AC 50/60 Hz input |
| Enclosure | Impact-resistant metal |
| Mounting Options | VESA 100mm x 100mm |
| Environmental/Ruggedness Ratings | IP54 |
| Warranty Included | 1 year |
| Warranty Optional | 2 or 3 year |
| Certifications | FCC/CE |
| Group Items | Industrial Grade 12" Mobile Data Terminal 8GB RAM, Industrial Grade 15" Mobile Data Terminal 8GB RAM |
| Resolution | 1920 x 1080 |
| Display Size | 42” |
| Touchscreen | Infrared Touchscreen |
| Dimensions | 41.04” x 24.57” x 10.26” (1042.42mm x 624.078mm x 260.604mm) |
| Weight | 80 lbs (36.3 kg) |
| Casing | Machined Aluminum Front Bezel with Aluminum Enclosure |
| Optional Accessories | Bulkhead Mounting |
| Power | AC |
| Keypad/Additional Keys | Membrane Keys for Display Control Functions |
| Fan/Fanless | Fan with filters |
| Temp. Operating | 0–50°C (32–122°F) |
| Other Features | Optional: Speaker |
| Ports, Slots & Peripherals | Video Options: MIL connectors or std commercial options (VGA, DVI, HDMI, display port) Touch Interface (if applicable): USB or Seria |
| Vibration | MIL-STD-167-1 |
| Shock | MIL-S-901D Grade A |
| Environmental | MIL-STD-810 |
| EMI/EMC | MIL-STD-461 |
Configuration
| Panel PC Display |
Industrial Grade 15.6" 16:9 Panel-Mount Display Industrial Grade 18.5" 16:9 Panel-Mount Display Industrial Grade 21.5" 16:9 Panel-Mount Display Industrial Grade 24" 16:9 Panel-Mount Display |
| Panel PC Base |
Powder Coated Aluminum BEZEL,M-SERIES,15.6",SS |
| Input Option | Touchscreen |
| Power Supply |
24 Volt DC (N/A on M2100W & M2200W) 100-240 VAC |
| Configurations | Industrial Grade 12" Mobile Data Terminal 8GB RAM |
|---|
Looking for different specifications to meet your application needs? We are specialists in custom
engineered solutions. Contact us to learn more.
