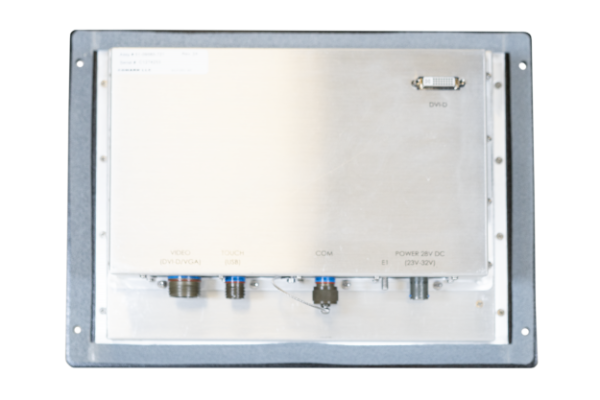

Military Displays - 12.1″ 4:3 Panel Mount Display Family
Military Grade 12.1" 4:3 Panel Mount Display Family
Military Grade 12.1" 4:3 Panel Mount Display Family
Military Displays - 12.1″ 4:3 Panel Mount Display Family

Military Grade 12.1″ 4:3 Panel Mount Display Family

Only the sizes are standard on the practical and incredibly useful Comark Military Grade 4:3 Display Family (Touch, Glass, AC, DC, Panel Mount, Bulkhead Mount). It has military-grade EMI/EMC, environmental, vibration, and shock testing as well as membrane keys for the display control functions, for easier use in harsh conditions. This hardworking display comes in 3 sizes (12.1″,15″,19″) with options for cost-effective resistive touch or glass screens. Popular with aerospace/defense clients, it’s also rugged and bulkhead or VESA-mountable. All Comark displays can be further customized to meet specific industry or technical needs.
Get a Quote
Tech Specifications
Screen Size

12.1"
Screen Type

LED
Aspect Ratio

4:3
Resolution

1024 x 768
Brightness

350-nit or HB 1000-nit
Touchscreen Type

Resistive Touchscreen
Dimensions

14.45" x 11.02" x 3.27" (367.03mm x 279.91mm x 83.1mm)
Weight

9.5 lbs.
Keypad

Membrane Keys for Display Control functions
I/O

Audio In/Out, Mic ports
Audio

Optional Speaker
Fan or Fanless

Fanless
Operating Temperature

0°C to 50°C (32°F to 122°F)
Power

85-264VAC 50/60Hz Power Consumption 75 Watts MAX
Enclosure

Machined Aluminum front bezel with aluminum enclosure
Cutout Dimensions

12.09" W x 10.59" H
Cutout Depth

2.861"
Bulkhead Mounting

Optional Bulkhead Mounting
Vibration Test

Per MIL-STD-167-1
Shock Test

Grade A per MIL-S-901D
EMI/EMC

Per MIL-STD-461
Warranty Included

1 year
Warranty Optional

2 or 3 year optional
Group Items

Military Grade 12.1” 4:3 Panel Mount Display AC Touch, Military Grade 12.1” 4:3 Panel Mount Display DC Touch

Get a Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*
Marketing Updates

By registering, I agree to the processing of my personal data by Comark as described in the privacy statement.

Key Highlights

Fingerprint

Wifi

Protected

NFC

Easy to Use

QR Scan

Locator

Windows

TECHNICAL SPECIFICATIONS

Screen Size

12.1"
Screen Type

LED
Aspect Ratio

4:3
Resolution

1024 x 768
Brightness

350-nit or HB 1000-nit
Touchscreen Type

Resistive Touchscreen
Dimensions

14.45" x 11.02" x 3.27" (367.03mm x 279.91mm x 83.1mm)
Weight

9.5 lbs.
Keypad

Membrane Keys for Display Control functions
I/O

Audio In/Out, Mic ports
Audio

Optional Speaker
Fan or Fanless

Fanless
Operating Temperature

0°C to 50°C (32°F to 122°F)
Power

85-264VAC 50/60Hz Power Consumption 75 Watts MAX
Enclosure

Machined Aluminum front bezel with aluminum enclosure
Cutout Dimensions

12.09" W x 10.59" H
Cutout Depth

2.861"
Bulkhead Mounting

Optional Bulkhead Mounting
Vibration Test

Per MIL-STD-167-1
Shock Test

Grade A per MIL-S-901D
EMI/EMC

Per MIL-STD-461
Warranty Included

1 year
Warranty Optional

2 or 3 year optional
Group Items

Military Grade 12.1” 4:3 Panel Mount Display AC Touch, Military Grade 12.1” 4:3 Panel Mount Display DC Touch
Configurations

Military Grade 12.1” 4:3 Panel Mount Display AC Touch
Military Grade 12.1” 4:3 Panel Mount Display DC Touch
Resolution 1920 x 1080
Display Size 42”
Touchscreen Infrared Touchscreen
Dimensions 41.04” x 24.57” x 10.26” (1042.42mm x 624.078mm x 260.604mm)
Weight 80 lbs (36.3 kg)
Casing Machined Aluminum Front Bezel with Aluminum Enclosure
Optional Accessories Bulkhead Mounting
Power AC
Keypad/Additional Keys Membrane Keys for Display Control Functions
Fan/Fanless Fan with filters
Temp. Operating 0–50°C (32–122°F)
Other Features Optional: Speaker
Ports, Slots & Peripherals Video Options: MIL connectors or std commercial options (VGA, DVI, HDMI, display port) Touch Interface (if applicable): USB or Seria
Vibration MIL-STD-167-1
Shock MIL-S-901D Grade A
Environmental MIL-STD-810
EMI/EMC MIL-STD-461

Configuration

Panel PC Display Industrial Grade 15.6" 16:9 Panel-Mount Display
Industrial Grade 18.5" 16:9 Panel-Mount Display
Industrial Grade 21.5" 16:9 Panel-Mount Display
Industrial Grade 24" 16:9 Panel-Mount Display
Panel PC Base Powder Coated Aluminum
BEZEL,M-SERIES,15.6",SS
Input Option Touchscreen
Power Supply 24 Volt DC (N/A on M2100W & M2200W)
100-240 VAC

Looking for different specifications to meet your application needs? We are specialists in custom
engineered solutions. Contact us to learn more.
